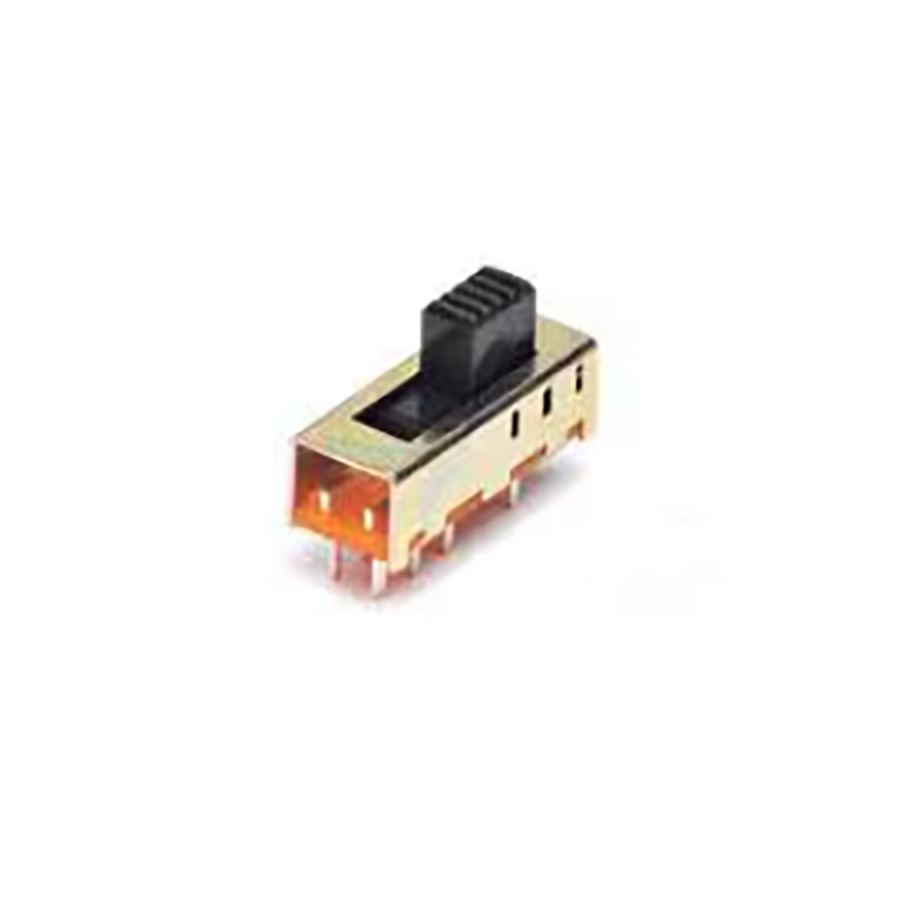

STS1400PC04
Manufacturer:
TE Connectivity
Mfr.Part #:
STS1400PC04
Datasheet:
Description:
Slide Switches SMD/SMT ON - ON - ON - ON Current Rating:300 mA Slide
| Parameter | Value |
|---|---|
| Length | 18.01114 mm |
| Width | 6.1 mm |
| Termination | PC Pins, SMD/SMT |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -10 °C |
| Voltage Rating (AC) | 125 V |
| Packaging | Bulk |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Copper Alloy |
| Type | Switch |
| Current Rating | 300 mA |
| Max Current Rating | 250 mA |
| Flammability Rating | UL94HB |
| Orientation | Vertical |
| Actuator Length | 4 mm |
| Throw Configuration | SP4T |
| Number of Positions | 4 |
| Contact Style | Shorting |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 125 V |
| Switch Function | ON - ON - ON - ON |
| Switch Travel | 2.5 mm |
| Actuator Material | Acetal, Polyoxymethylene |
| Mechanical Life | 10 kcycles |
| Contact Current Rating | 250 mA |
| Actuator Type | Slide |
| Termination Style | Solder |
| Tail Length | 2.4892 mm |
| Schedule B | 8536509050 |
